Configure Jenkins Parameterized Job

Technical Overview

Continuous Integration pipelines frequently require dynamic inputs—such as target deployment environments, release tags, or feature flags—without modifying the job’s underlying script configuration. Jenkins supports this through Parameterized Builds, allowing users to prompt operators for custom inputs at runtime.

When a build is parameterized:

1. Input Collection: Jenkins prompts the user with customized input UI controls (text boxes, drop-down menus, checkboxes) before scheduling the build.
2. Environment Variable Injection: Jenkins injects each parameter key-value pair as an environment variable into the job’s execution runtime process context.
3. Shell Execution: Shell build steps can dereference these parameters directly (e.g., $Stage, $env) to dynamically route execution logic.

graph TD
    subgraph ClientLayer ["DevOps Engineer / Operator"]
        User["User Interface Prompt"]
    end

    subgraph JenkinsController ["Jenkins Controller"]
        JobConfig["Freestyle Project: parameterized-job"]
        StringParam["String Parameter: Stage = Build"]
        ChoiceParam["Choice Parameter: env = Staging"]
        EnvInjection["Process Environment Variables"]
        ShellStep["Execute Shell Build Step"]
    end

    subgraph ConsoleLog ["Execution Log"]
        Output["Console Output Stream"]
    end

    User -->|"1. Select Build with Parameters"| JobConfig
    JobConfig -->|"2. Supply Stage"| StringParam
    JobConfig -->|"3. Select Choice"| ChoiceParam
    StringParam -->|"4. Export Stage Parameter"| EnvInjection
    ChoiceParam -->|"5. Export env Parameter"| EnvInjection
    EnvInjection -->|"6. Execute echo commands"| ShellStep
    ShellStep -->|"7. Print Parameter Values"| Output

---

Parameterized Build Fundamentals Deep Dive

1. Parameter Types in Jenkins

Jenkins provides various parameter types to handle different categories of inputs:

• String Parameter: A single-line text input field. Ideal for arbitrary text strings, branch names, or version tags. Can include an optional default value.
• Choice Parameter: A drop-down selection menu defined by listing choices one per line. Ensures operators only choose from a predefined, safe list of valid values (e.g., Development, Staging, Production).
• Boolean Parameter: A checkbox returning true or false.
• Credentials Parameter: Securely passes managed secrets or tokens into build execution.

2. Environment Variable Resolution

When Jenkins launches the build subprocess (/bin/sh -xe), parameter values are exported into the shell environment:

• In Unix/Linux environments, parameter names are accessed using dollar-sign variable expansion ($Stage, $env or ${Stage}, ${env}).
• Case sensitivity is maintained based on the exact parameter name specified in the job configuration.

---

Infrastructure & Configuration Requirements

• Jenkins Controller Access: Web Browser (HTTP) on port 8080
• Admin Credentials: admin / Adm!n321

Jenkins Job Specifications

• Job Type: Freestyle Project
• Job Name: parameterized-job

Parameter 1: String Parameter

• Name: Stage
• Default Value: Build

Parameter 2: Choice Parameter

• Name: env
• Choices:
  • Development
  • Staging
  • Production

Build Step Configuration

• Type: Execute shell
• Shell Script Command:

  echo "stage" $Stage
  echo "env" $env


Verification Execution Requirements

• Selected Choice for env: Staging

---

Step-by-Step Walkthrough

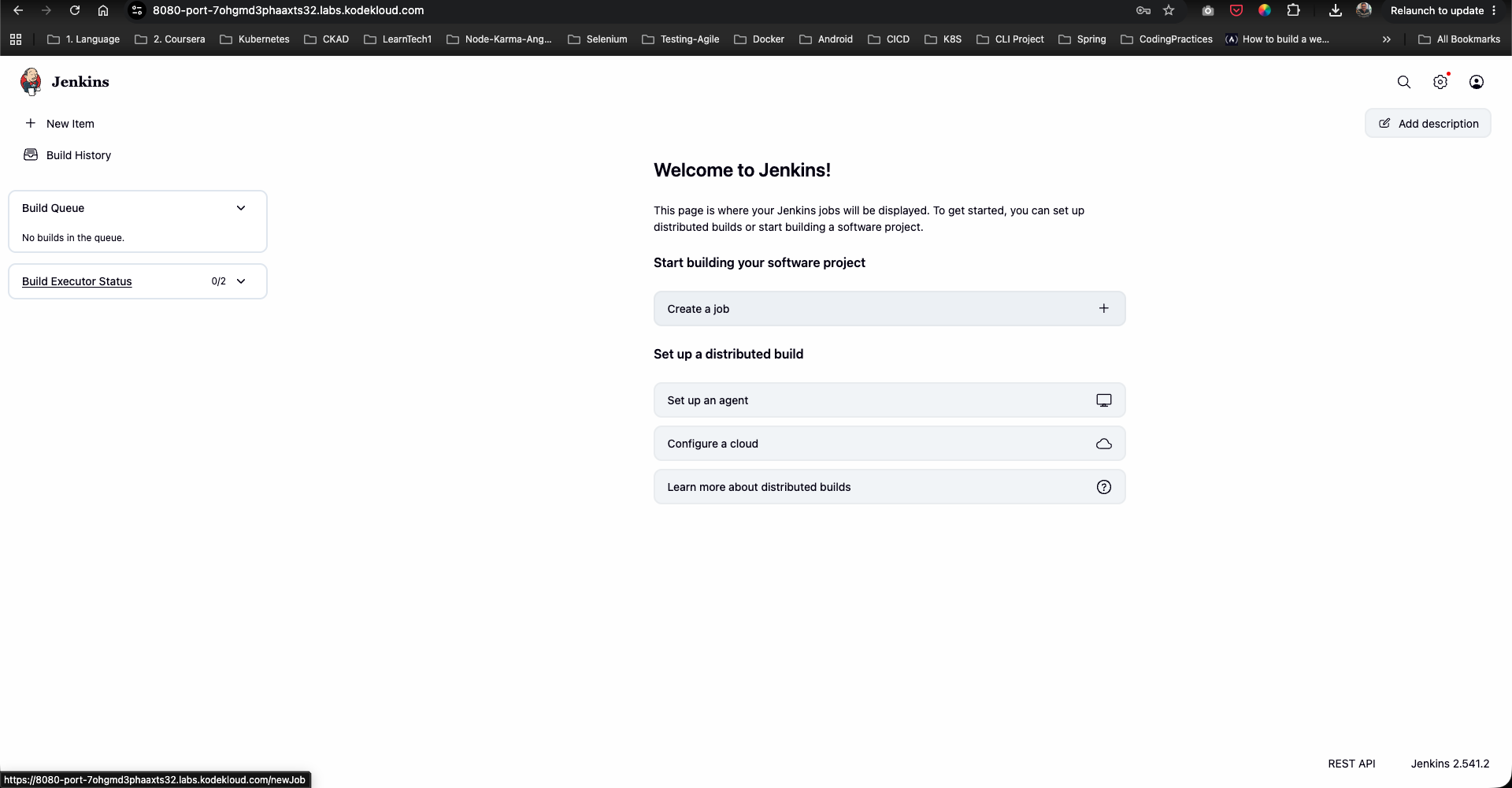

Step 1: Log in to the Jenkins Console

1. Open your web browser and navigate to the Jenkins login page.
2. Sign in using the administrative credentials:
   • Username: admin
   • Password: Adm!n321

---

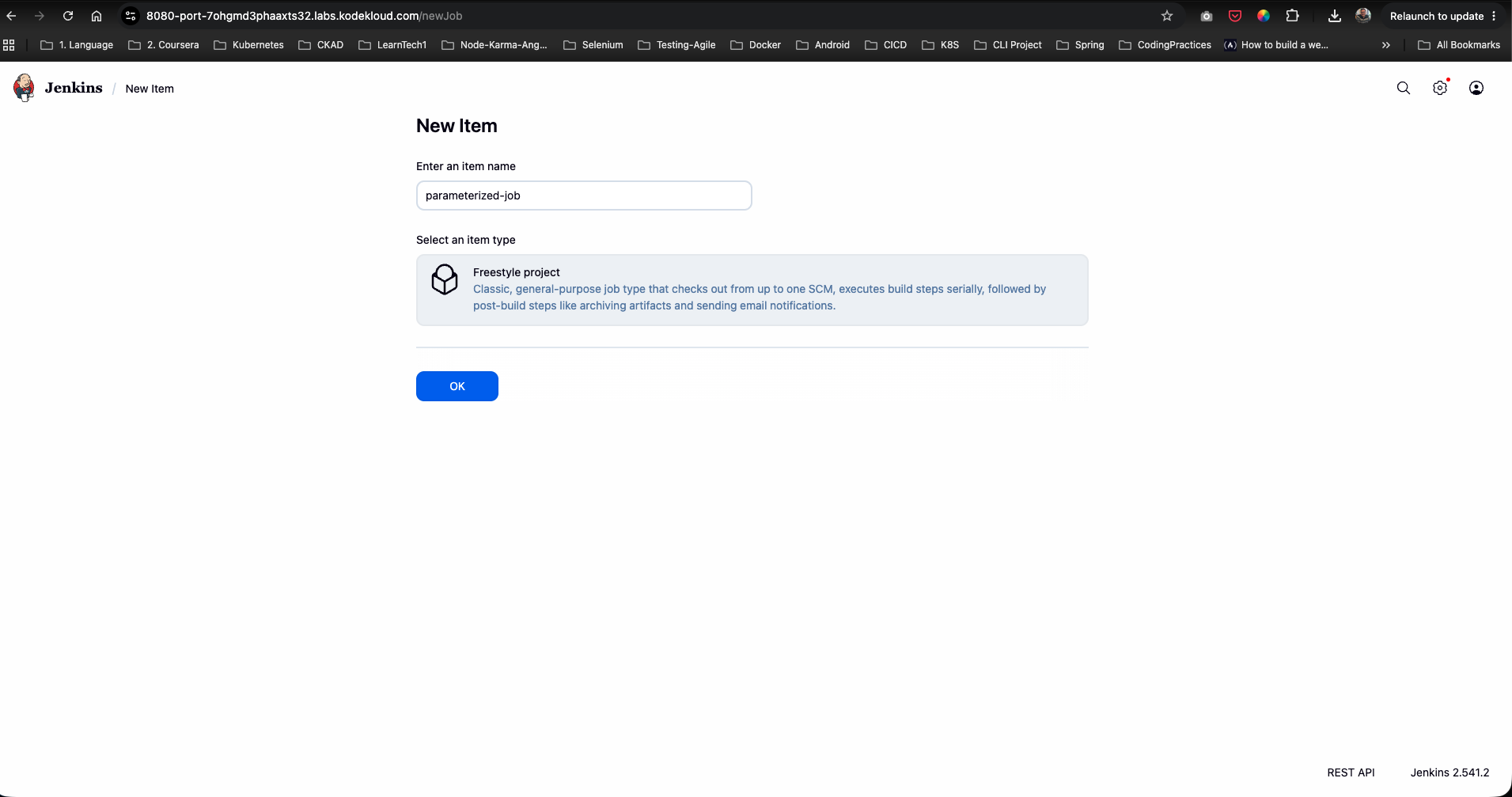

Step 2: Create the parameterized-job Freestyle Project

1. From the left sidebar, click New Item (or click Create a job).
2. Enter the item name: parameterized-job.
3. Select Freestyle project.
4. Click OK.

---

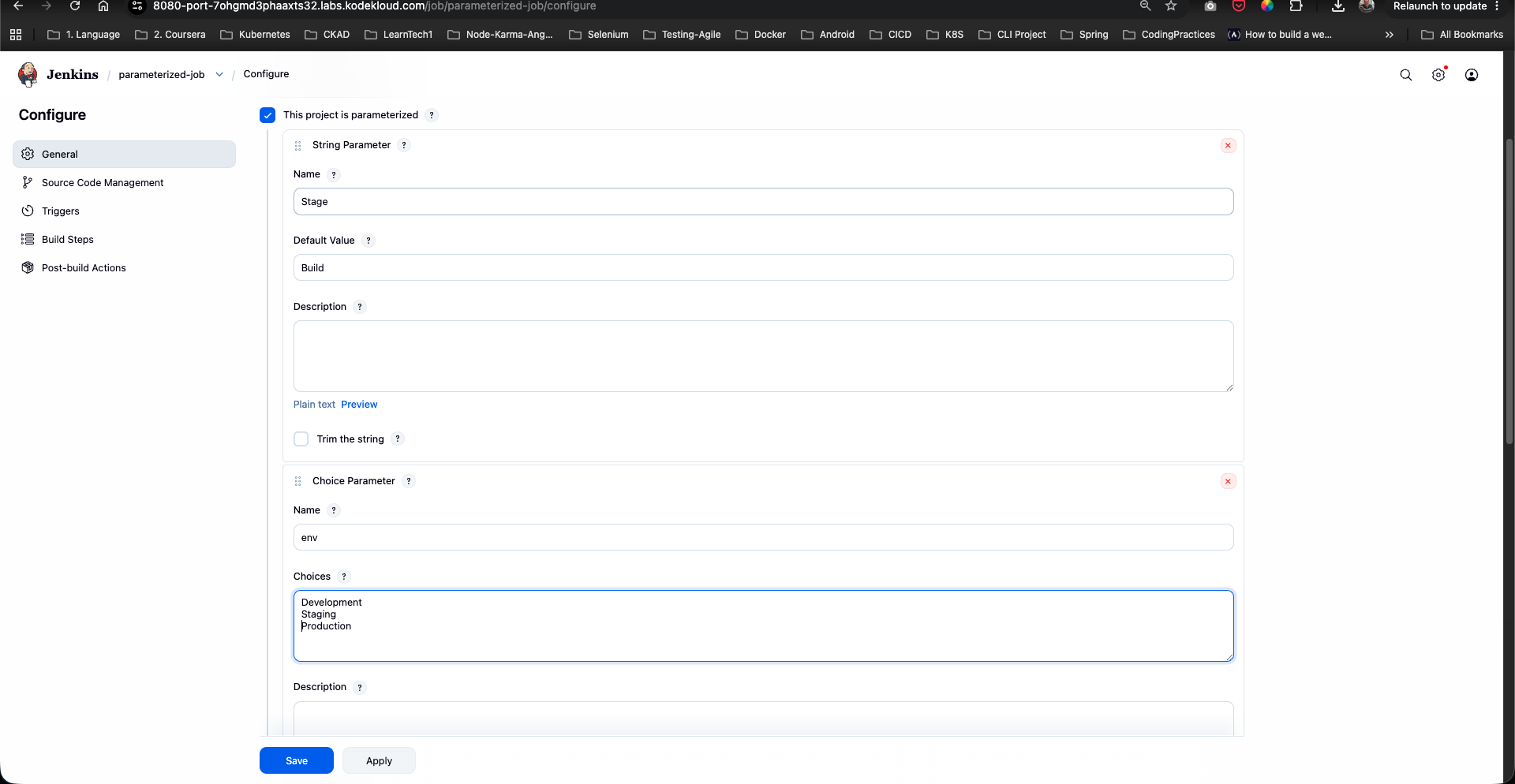

Step 3: Configure Job Parameters

1. Under the General tab, check the box for This project is parameterized.
2. Click Add Parameter and choose String Parameter:
   • Name: Stage
   • Default Value: Build
3. Click Add Parameter again and choose Choice Parameter:
   • Name: env
   • Choices: Enter the following options, each on a new line:

     Development
     Staging
     Production


---

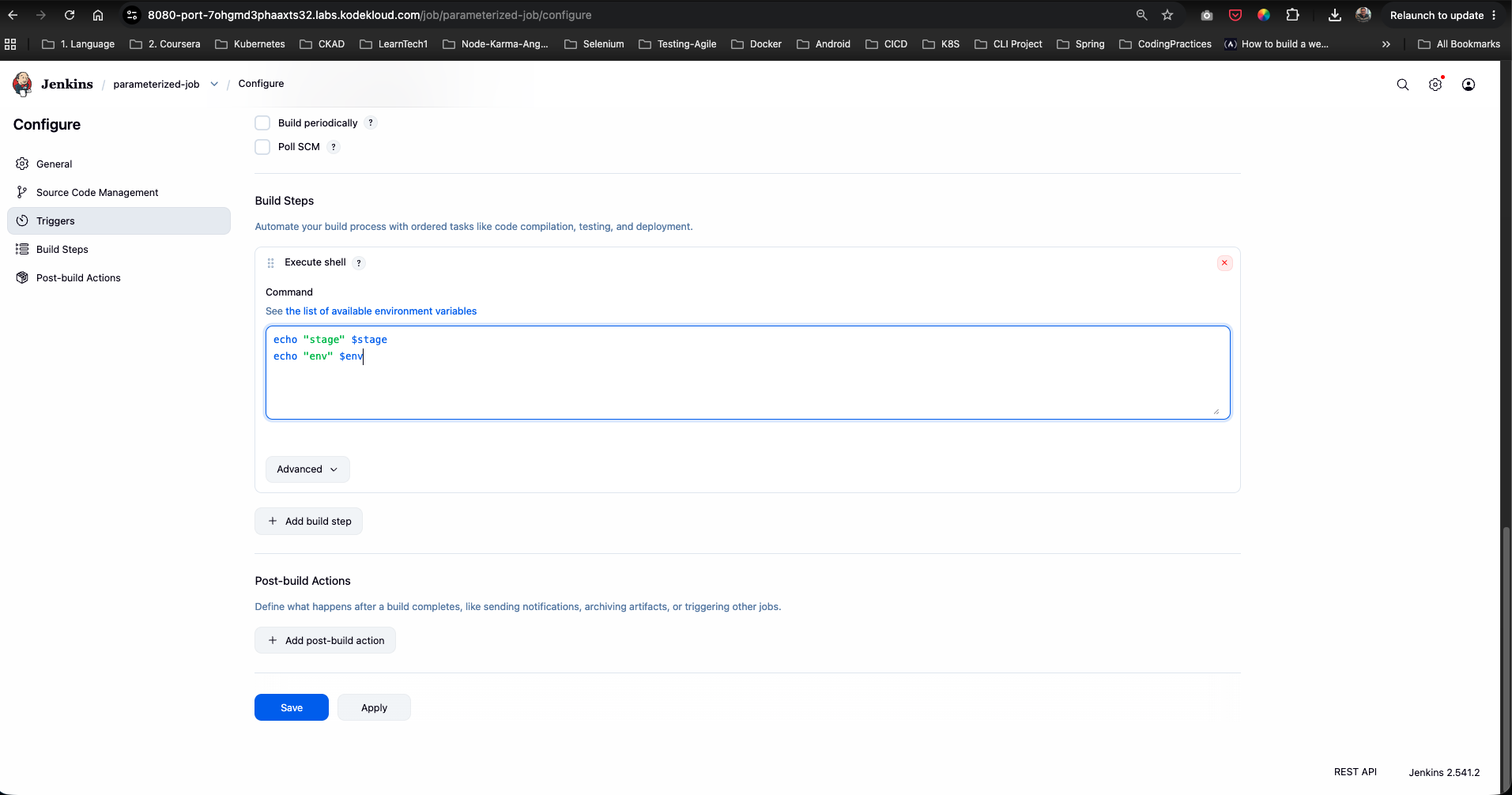

Step 4: Configure Execute Shell Build Step

1. Scroll down to the Build Steps section.
2. Click Add build step and select Execute shell.
3. In the Command field, enter the shell commands to print the parameter variables:

   echo "stage" $Stage
   echo "env" $env


4. Click Save to persist the configuration.

---

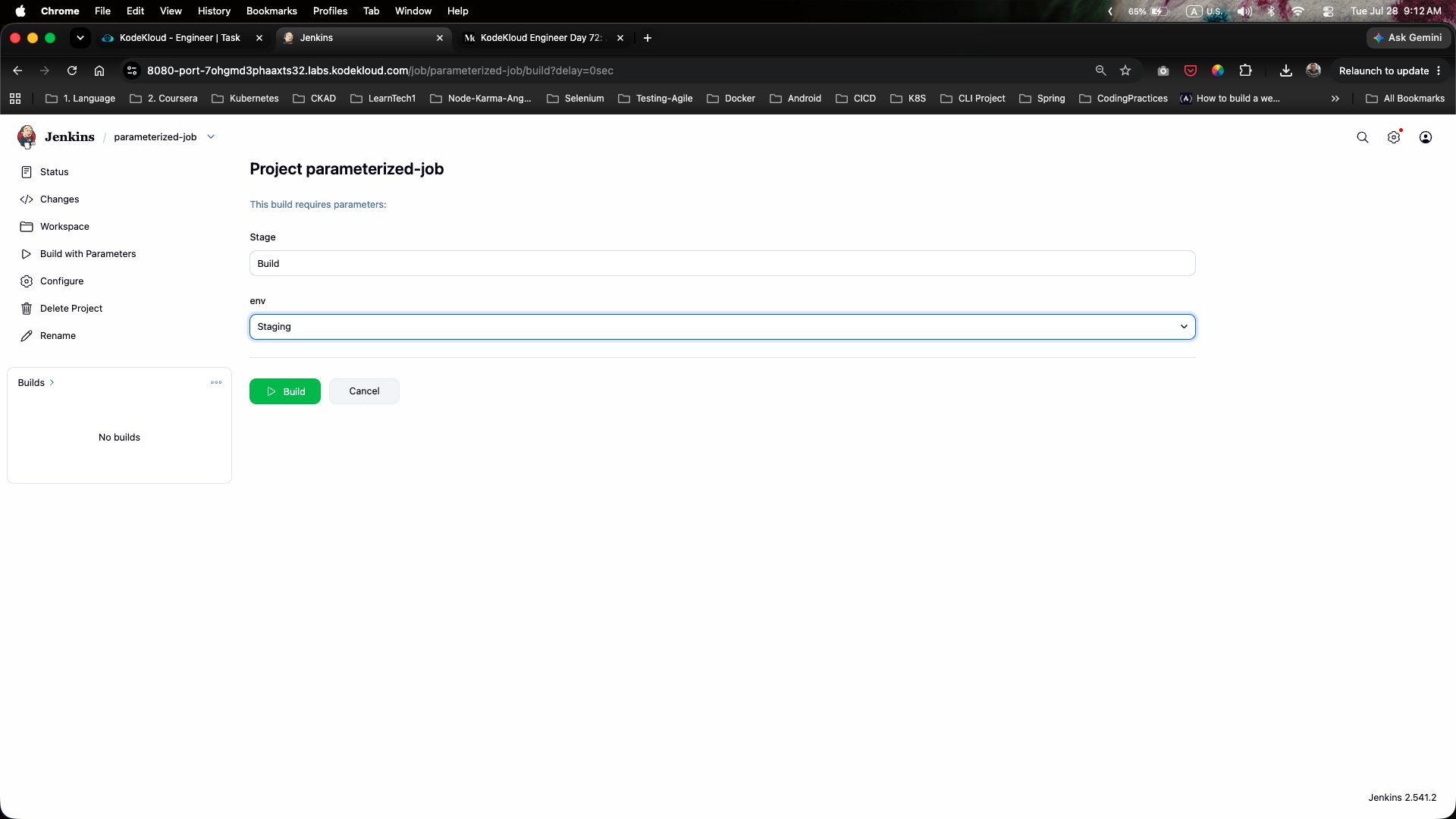

Step 5: Execute Job with Parameters

1. From the sidebar of the parameterized-job project page, click Build with Parameters.
2. Verify that Stage contains the default value Build.
3. From the env drop-down menu, select Staging.
4. Click the green Build button.

---

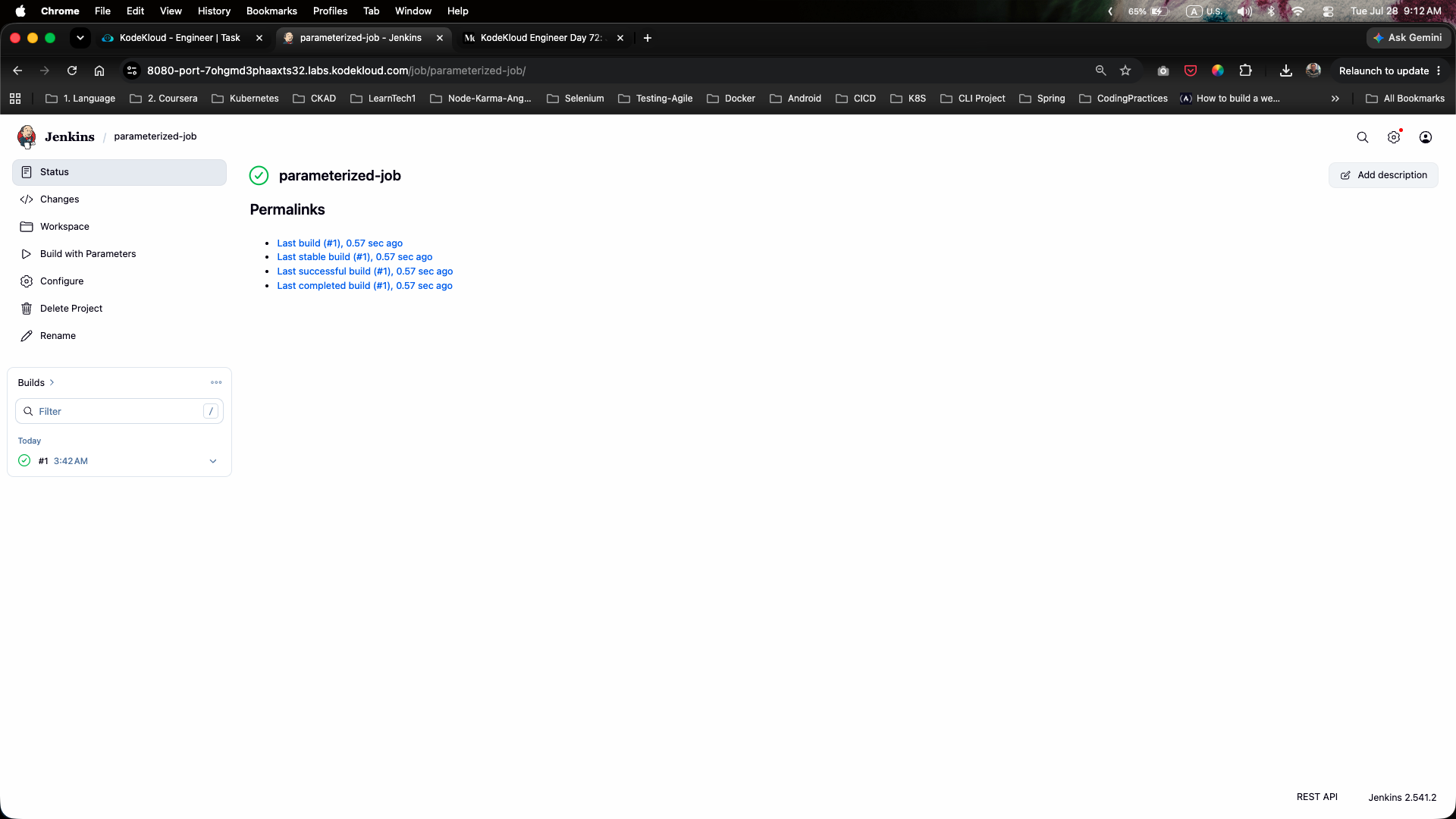

Step 6: Monitor Execution Status

1. Observe the Build History panel on the left sidebar.
2. Build #1 will execute and complete successfully, marked with a green checkmark icon (SUCCESS):

---

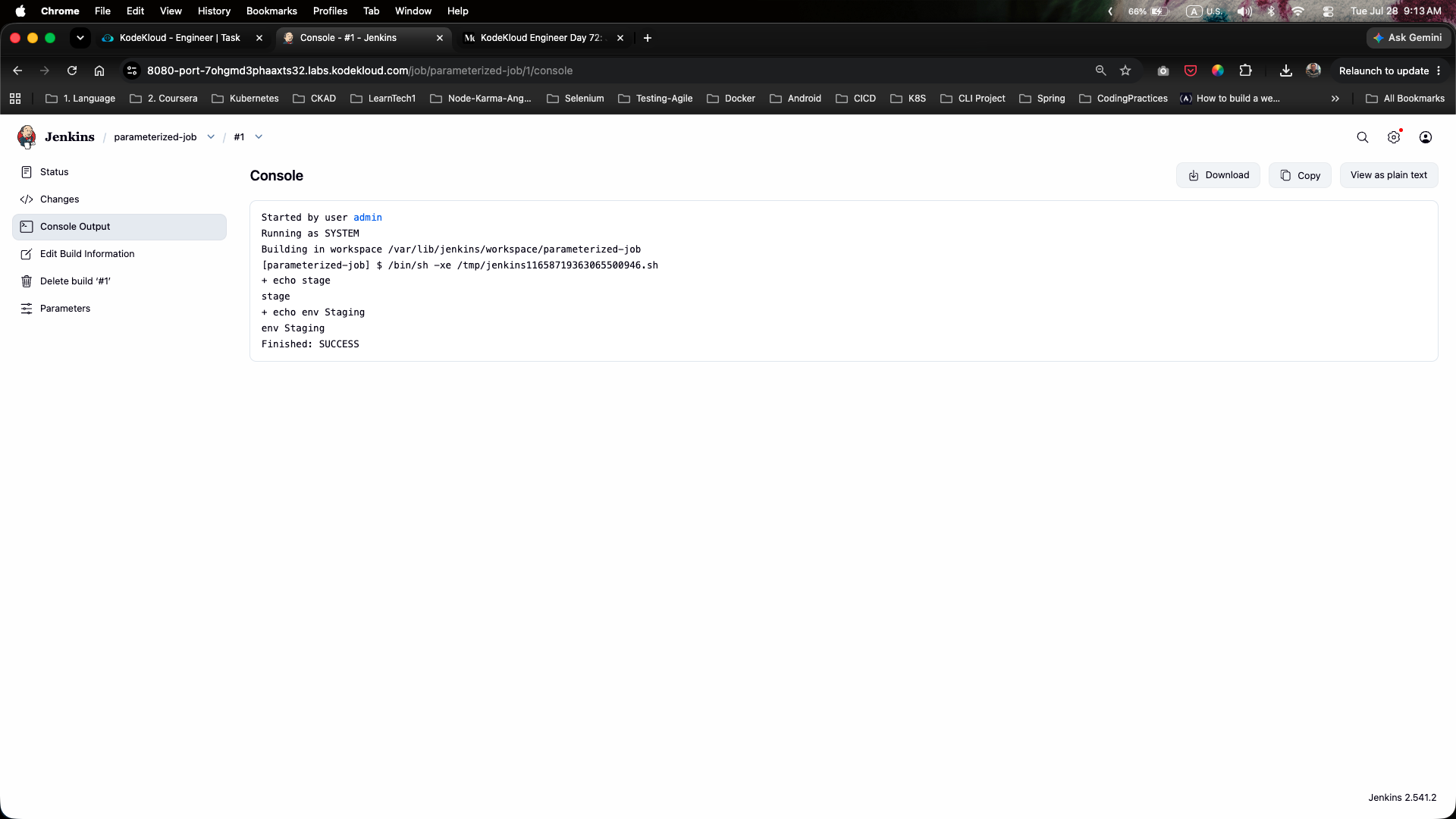

Step 7: Inspect Console Output & Verify Parameters

1. Click on build #1 and select Console Output.
2. Verify the execution log:
   • The process executed the generated /bin/sh script.
   • + echo stage Build printed stage Build.
   • + echo env Staging printed env Staging.
   • The build finished with status Finished: SUCCESS.

The Jenkins parameterized job has been successfully configured and verified!
